Profibus DP Communication Card for Delta VFD-MS300-MH300

8400 INR/Piece

Get a Price/Quote

Product Details:

Processor Type Embedded Microcontroller
Automation Grade Automatic/Industrial
Weight Approx. 120g
Cable Length As per Profibus DP Standard (max up to 1200m with suitable cable and speed)
Control Type Fieldbus Communication
Speed Range Follows VFD Specifications
Remote Control Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Profibus DP Communication Card for Delta VFD-MS300-MH300 Price And Quantity

Minimum Order Quantity 1 Piece
Price 8400 INR/Piece

Dimensions 90mm x 50mm x 20mm (approx.)
Supported Protocols Profibus DP-V0
Configuration GSD File Provided
Installation Direct Insert into VFD Expansion Slot
Isolation Optical Isolation for Fieldbus Signals
Upgradeability Firmware Upgradable via VFD
Diagnostic LED Status Indicators for Run, Error, Communication
Baud Rate 9.6 kbps to 12 Mbps (auto-detect)
Module Address Setting Configurable by DIP switches
Supported Devices Delta VFD-MS300 and MH300 Series Drives

Profibus DP Communication Card for Delta VFD-MS300-MH300 Product Specifications

Speed Range Follows VFD Specifications
IP Rating IP20
Phase Compatible with 1-phase/3-phase VFDs
Remote Control Yes
Control Type Fieldbus Communication
Features Easy VFD Integration, Reliable Communication, Diagnostic LEDs
Product Type Profibus DP Communication Card for Delta
Material Industrial Grade PCB and Electronic Components
Voltage 24V DC (via VFD)
Drive Type Frequency Inverter (VFD)
Mounting Type Plug-in Card for VFD
Frequency Max 12 Mbps (Profibus DP Standard)
Automation Grade Automatic/Industrial
Weight Approx. 120g
Processor Type Embedded Microcontroller
Connectivity Type Profibus DP (9-pin D-sub)
Cable Length As per Profibus DP Standard (max up to 1200m with suitable cable and speed)
Application Provides Profibus DP Communication for Delta VFD-MS300 and MH300 Series
Temperature Operating: -10C to +60C
Load Capacity Depends on VFD Model
Power Powered via VFD Expansion Port

Dimensions 90mm x 50mm x 20mm (approx.)
Supported Protocols Profibus DP-V0
Configuration GSD File Provided
Installation Direct Insert into VFD Expansion Slot
Isolation Optical Isolation for Fieldbus Signals
Upgradeability Firmware Upgradable via VFD
Diagnostic LED Status Indicators for Run, Error, Communication
Baud Rate 9.6 kbps to 12 Mbps (auto-detect)
Module Address Setting Configurable by DIP switches
Supported Devices Delta VFD-MS300 and MH300 Series Drives

Profibus DP Communication Card for Delta VFD-MS300-MH300 Trade Information

Supply Ability 100 Piece Per Day
Delivery Time 1 Week

Product Description

Profibus DP Communication Card for Delta VFD-MS300-MH300 supports DB9 connector. Its enclosure comprises of covered twisted pair cable for power transmission. It uses RS-485 operating interface. Profibus DP Communication Card for Delta VFD-MS300-MH300 is capable of supporting PZD cyclic data. It is compatible with user diagnosis function. Standard of this product has been verified on the basis of its service life, design precision, longevity, performance etc. This communication card has been developed by skilled technocrats. It is simple to fix and easy to handle.

Reliable Communication and Easy Integration

This Profibus DP card offers straightforward installation by plugging directly into the VFD expansion slot of Delta MS300 or MH300 drives. With optical isolation and diagnostic LEDs for run, error, and communication statuses, technicians gain both reliability and excellent visibility of network health. The configuration process is simplified with a user-friendly GSD file and programmable DIP switches for module addressing.

Versatile Compatibility and Remote Control

Engineered for use with both Delta VFD-MS300 and MH300 series, the card supports both single-phase and three-phase VFDs. It enables remote monitoring and control through PLCs or SCADA systems over the Profibus DP fieldbus network-enhancing automation and operational efficiency for a variety of industrial applications.

Built for Industrial Performance

Constructed with industrial-grade PCBs and electronic components, the module operates effectively in harsh environments with a temperature range of -10C to +60C. Powered via the VFD expansion port and providing IP20 protection, it meets demanding industrial requirements for safety and reliability while reducing installation complexity.

FAQ's of Profibus DP Communication Card for Delta VFD-MS300-MH300:

Q: How do I install the Profibus DP Communication Card into a Delta VFD-MS300 or MH300 drive?

A: To install the card, simply power down your Delta MS300 or MH300 VFD, insert the Profibus DP Communication Card into the dedicated expansion slot, and secure it in place. The card draws power from the VFD expansion port, making installation fast and tool-free.

Q: What is the process for configuring the card's Profibus address and communication settings?

A: The module address is configured using DIP switches located on the card itself. For network settings, import the provided GSD file into your Profibus master (such as a PLC configuration tool) to integrate and map the VFD into your automation system.

Q: Which devices and protocols are supported by this communication card?

A: The card supports Delta VFD-MS300 and MH300 Series Drives and operates using Profibus DP-V0 protocol. It is compatible with both single-phase and three-phase models, enabling broad deployment across industrial applications.

Q: When might I benefit from using the diagnostic LED indicators on the card?

A: Diagnostic LEDs provide instant visual feedback on the card's operating status-including indicators for run, error, and communication status. This feature is especially beneficial during setup, troubleshooting, or maintenance, helping you quickly identify and resolve network or module issues.

Q: Where can this communication card be used and what environments is it suitable for?

A: Designed for industrial automation, the card is suitable for factories, processing plants, and other environments where reliable drive communication is essential. It operates within a temperature range of -10C to +60C and offers IP20 ingress protection.

Q: How does the card ensure reliable and robust Profibus communication?

A: The card features optical isolation for all fieldbus signals, providing protection against electrical noise and surges. This ensures stable and reliable communication, even in electrically demanding industrial settings.

Q: What are the benefits of integrating this card with my Delta VFD system?

A: Integrating the card enables remote control and monitoring via Profibus DP, enhances automation, reduces wiring complexity, and facilitates seamless connection to PLCs or SCADA systems. Its firmware can also be upgraded via the VFD, supporting future enhancements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Profibus Communication Modules' category

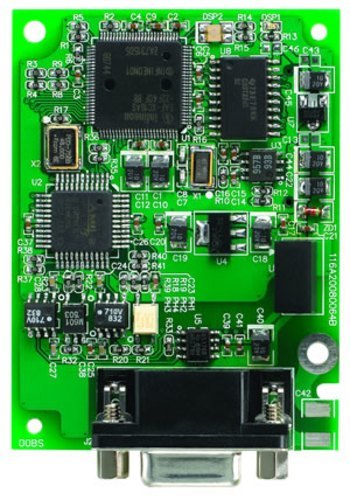

Profibus Communication Card for Delta VFD-C2000 Price : 785 - 700000 INR/Piece Minimum Order Quantity : 1 Automation Grade : Automatic Frequency : 50/60 Hz Weight : Approx. 120g Processor Type : Embedded Microcontroller Connectivity Type : Profibus DB9 / Terminal Block Mounting Type : Panel/Plugin Module Drive Type : Delta VFD C2000 Power : 3.5 W Temperature : 10C to +60C Application : Delta VFDC2000 Series Drive Profibus Communication Cable Length : Up to 1200m (as per Profibus DP specification) Control Type : Profibus DP IP Rating : IP20 Remote Control : Yes Phase : NA (Communication Card) Voltage : 24V DC (from VFD) Product Type : Profibus DP Communication Card for Delta Features : Plug & Play, Protocol Compliance, Diagnostic LEDs Material : Plastic and Electronic Components
